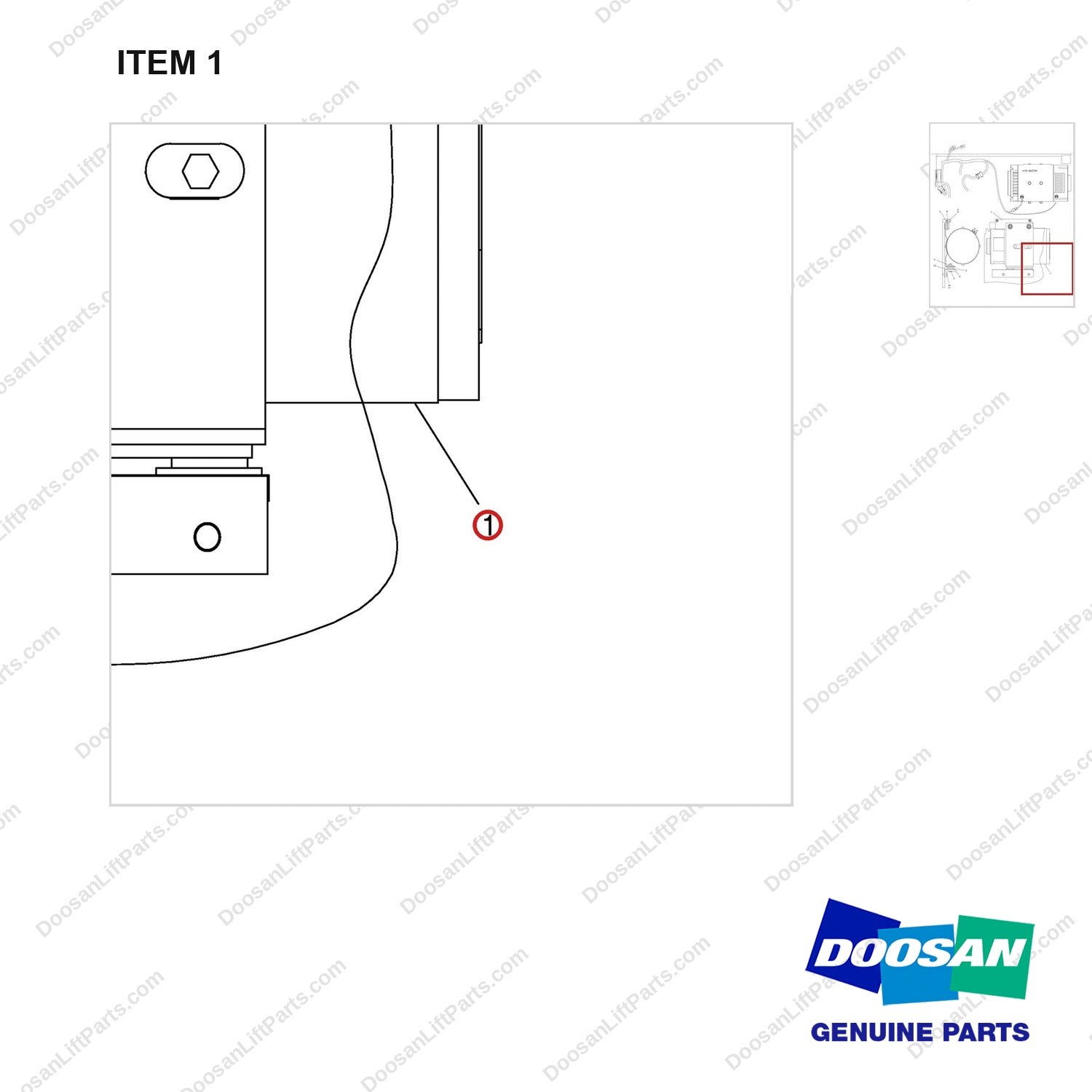

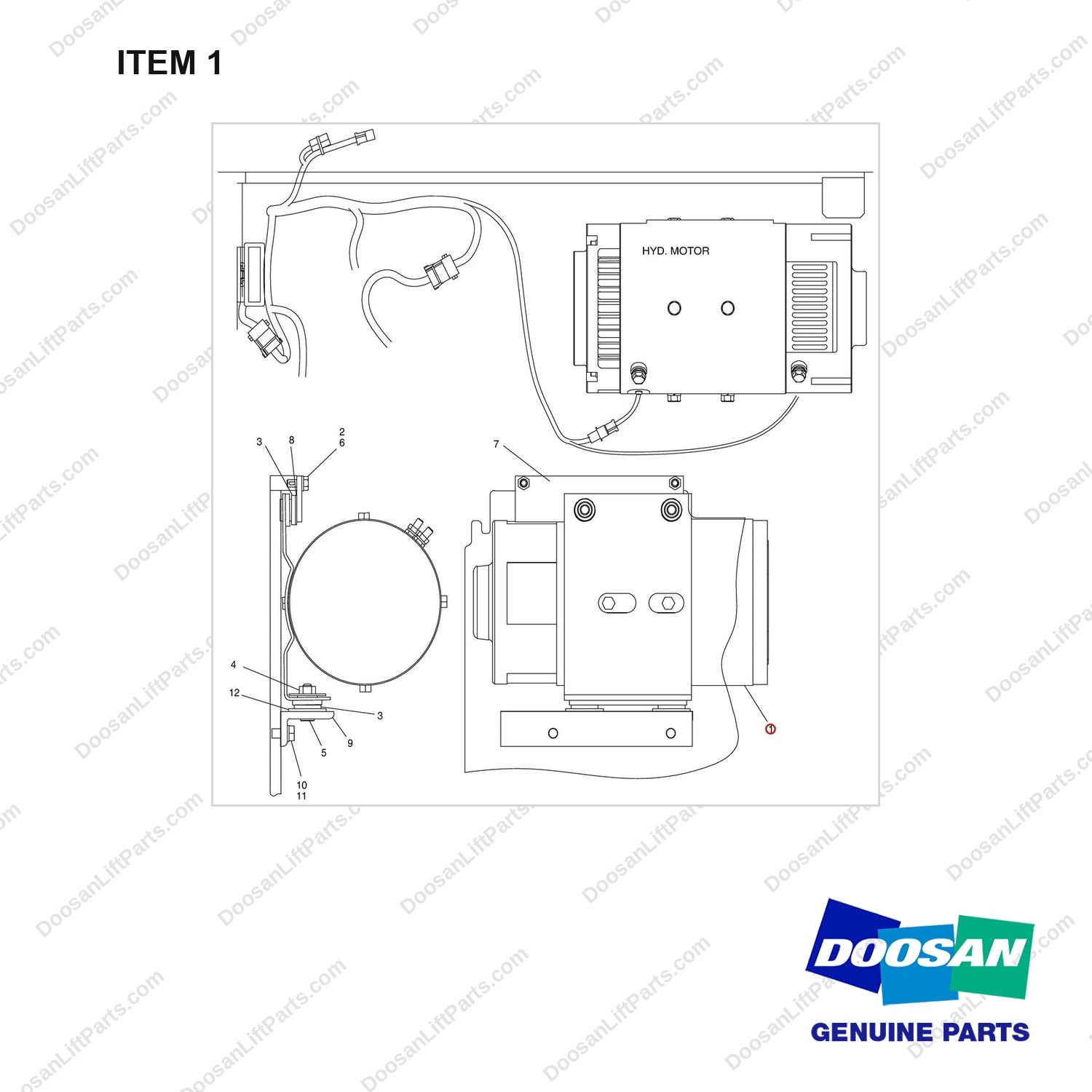

A154856 (replaces A154851, A200199, A200851) - Pump Motor Assembly - OEM Doosan Daewoo Bobcat

Parts Bulletin PT06-950937

LIFT TRUCK SERIES: PT06-950937 BC15/18/20T August 1, 2003 B13/15/18/20T-2 (36 Volt) For serial numbers beginning with: BL, BM, BN, D4, D5, D6 SUBJECT: Changed Motors Please be advised that Drive Motor – A200186 and Pump Motor – A200199 have been replaced in production on the above listed lift truck models: • A200186 was replaced by A154850 • A200199 was replaced by A154851 The old and new motors are interchangeable with each other at the assembly level only, therefore, you will need to know which motor you have before ordering individual service components for repair. Please see below for instructions on how to identify the motor you have and for a list of lower level service components used with each motor: A200186 A154850 The most noticeable difference between A200186 and A154850 is the identification tag. The A200186 motor has a white tag and the A154850 has a yellow tag. The tags also contain the part numbers as well. Lower Level Service Components for the A200186 and A154850 Motors: * Refer to your parts manual for component location on each motor A200186 Motor As A154850 Motor As A200832 Armature & Fan As D552908 Field As - Motor A200834 Head As - Comm. End D552802 End Bell As - D.E. A200839 Bearing - Ball D552918 End Bell As - Anti D.E. A200840 Washer - Spring D552321 Washer Wave A200841 Headband As - C.E. D552768 Bolt - Hex A200843 Pole Shoe Screw Pkg. D552767 Bolt - Socket A200844 Head As - D.E. D552617 Washer - Spring A200847 Seal - Shaft D.E. D552863 Brush A200848 … (continued in the PDF)
